CORC^® POWER CABLES AND CRYOGENIC INTERFACES

CORC^® cables and wires form our solution for power cable needs in liquid nitrogen or pressurized helium gas:
– High operating currents and current densities
– Voltage rating up to 10 kV
– Fault Current Limiting capabilities

CORC^® power and Fault Current Limiting cables and wires haveg developed with support of the U.S. Navy and in collaboration with the Center for Advanced Power Systems at Florida State University and Los Alamos National Laboratory.

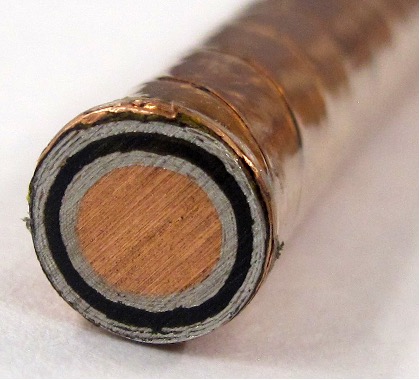

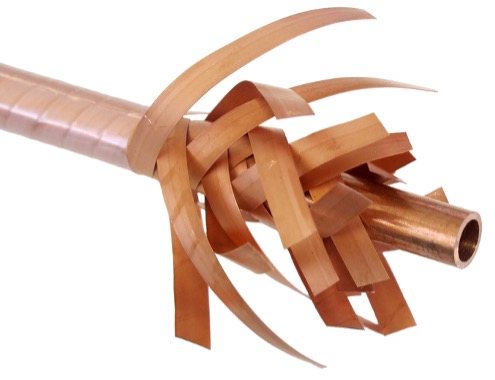

Left: CORC® power cable with hollow core for internal cooling. Right: 2-Pole CORC® power cable with a 10 kV dielectric.

	CORC® power transmission cables		CORC® power transmission wires
Diameter	6 to 8 mm		3 to 4 mm
Temperature	77 K	30 K	77 K	30 K
Current	10,000 A	50,000 A	4,000 A	20,000 A
Current Density	200 A/mm2	1,000 A/mm2	350 A/mm2	1,750 A/mm2
Voltage	10,000 V	10,000 V	3,000 V	3,000 V
Power	100 MW	500 MW	12 MW	60 MW
Power Density	2 MW/mm2	10 MW/mm2	1 MW/mm2	5 MW/mm2

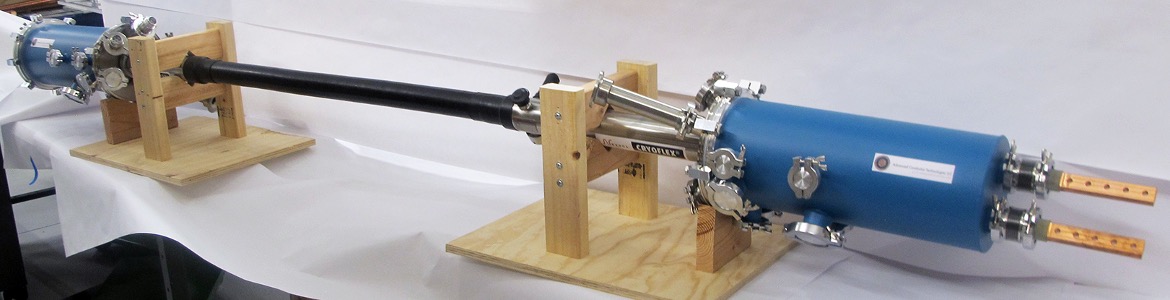

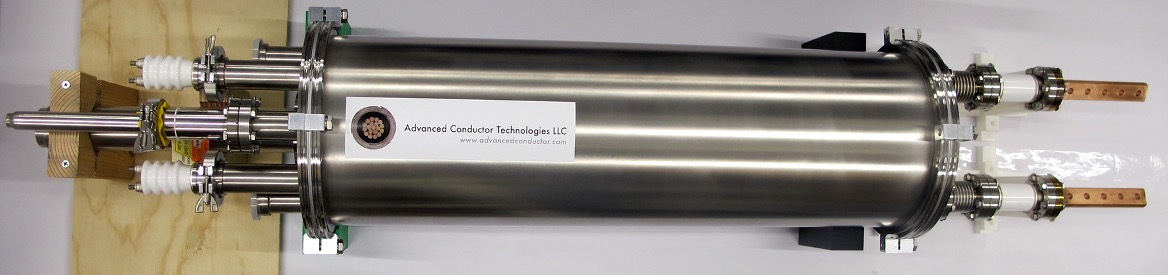

Advanced Conductor Technologies provides custom CORC^® power cables solutions that include the cryogenic interface to room temperature or components that operate at other cryogenic temperatures or are cooled with other cryogens than that cooling the power cable.
